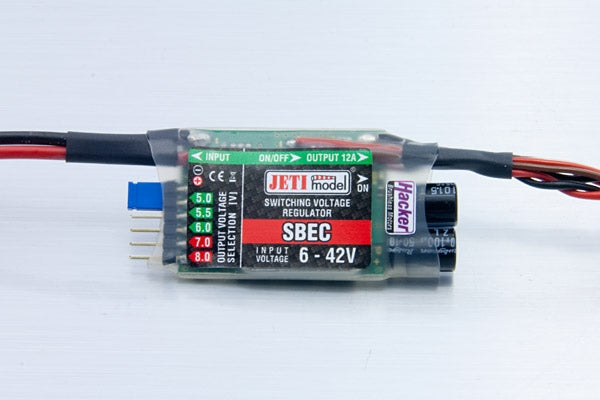

Jeti Model SBEC J-SBEC

Jeti Model SBEC J-SBEC

With this SBEC switching controller from JetiModels it is possible to supply their receivers and servos directly with the necessary voltage and current via the flight battery. With no end, 12A pulse current, the SBEC works with 2-10S LiXX batteries and can output an output voltage of 5-8V optionally. For example, we at Hacker use it in our factory helicopters to replace the bulky and heavy receiver battery. Also ideal for operation on 2S Lipo / LiFe as a powerful supply to the RC system on models with a combustion engine or more than 10S.

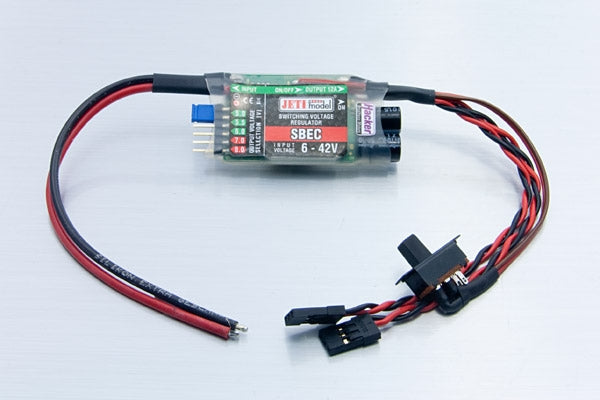

On the receiver side, the SBEC is equipped with two UNI (JR) connection cables. These reduce the contact resistance and are plugged into two free slots of the receiver.

Technical specifications:
Rec. Input voltage: 6 - 42V
Max. Input voltage: 50V
Dimensions approx .: 60x28x10mm
Weight approx .: 29g
Quiescent Current: 140-600μA (7-42V)
Max. Temperature: 85 ° C
Pulse current:
Quiescent Current: 12A
140μA (to 2S Lipo)
Continuous current: 3.5-6A, depending on the input voltage
Output voltage selectable: 5.0V; 5.5V; 6.0V; 7,0V; 8.0V
ON / OFF switch: designed as a safety switch, always ON for a defect
