Quick Summary

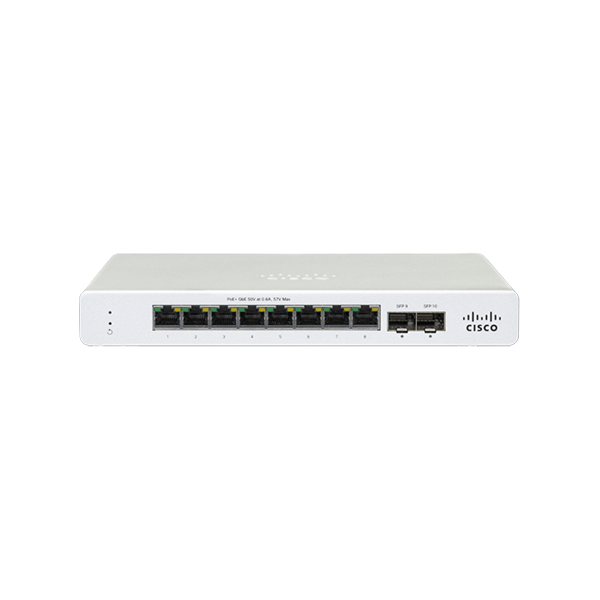

Buy the Cisco Meraki MS130-8P to bring enterprise-grade, cloud-managed networking to any business, office or retail site in the United States. This compact 8-port PoE switch delivers secure Layer-2 connectivity, effortless Meraki Dashboard control and flexible MS License options—all from an authorized reseller offering transparent comparison and pricing.
Use Cases
- Power and back-haul Wi-Fi 6/6E access points, VoIP handsets and IP cameras with 802.3bt PoE.
- Rapid branch or pop-up deployment—just plug in, claim the device and manage everything from the cloud.
- Quiet desktop or wall-mount networking for conference rooms, retail counters and healthcare suites.
Key Features
- 8 × 1 GbE RJ45 user ports with 802.3bt PoE (30 W per port, 120 W total)
- 2 × 1 Gb SFP uplink slots for fiber or copper modules
- 20 Gbps switching fabric in a fanless, silent chassis
- Full Meraki Dashboard management, APIs, remote packet capture and automatic firmware updates
- Layer-2 security: 802.1X, DHCP snooping, IPv4/6 ACLs & VLAN tagging
- Compact desktop / integrated wall-mount enclosure (1.1 in × 8.74 in × 6 in, 0.88 kg)
- External 54 V DC power supply; MTBF 563,569 hours
Technical Specifications
- Switching capacity: 20 Gbps (non-blocking)
- Forwarding rate: 14.88 Mpps
- PoE budget: 120 W total (802.3bt Class 6)
- Operating temperature: 0 – 45 °C; humidity 5 – 95 %
- Power draw (idle/max): 8 W / 128 W
- Storage temperature: -20 – 70 °C
- Mounting: Desktop or wall (brackets included)
Comparison
| Model | User Ports | PoE Budget | Uplinks | Switching Capacity | Best For |
|---|---|---|---|---|---|
| MS130-8 | 8 × 1 Gb | – | 2 × 1 Gb SFP | 20 Gbps | Low-cost data-only sites |
| MS130-8P | 8 × 1 Gb | 120 W | 2 × 1 Gb SFP | 20 Gbps | PoE cameras & APs |
| MS130-8X | 6 × 1 Gb + 2 × 2.5 Gb | 120 W | 2 × 10 Gb SFP+ | 62 Gbps | High-speed edge & Wi-Fi 6E |
FAQs
Does the MS130-8P need an MS License?
Yes. Choose either an Enterprise (standard features) or Advanced (adds Adaptive Policy) MS License term of 1, 3, 5, 7 or 10 years.
Can I mount the switch on a wall?
The compact chassis includes integrated wall-mount slots and ships with a desktop power supply.
What SFP modules are supported?
MA-SFP-1GB-SX, LX10 and TX transceivers are validated for the SFP uplink slots.
Is fan noise an issue?
No—the MS130-8P is completely fanless, making it ideal for quiet environments.
Licensing and Support
As an authorized Cisco Meraki reseller we supply hardware, MS Licenses and optional Smart Net support bundles. Contact us for current the United States-wide pricing, lead-times and renewal assistance.
Buy from an authorized Cisco Meraki Reseller in the United States
Cloudifi is a certified Cisco authorized reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single MS130-8P unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in the United States.
Volume Pricing and Custom Quotes
Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.
