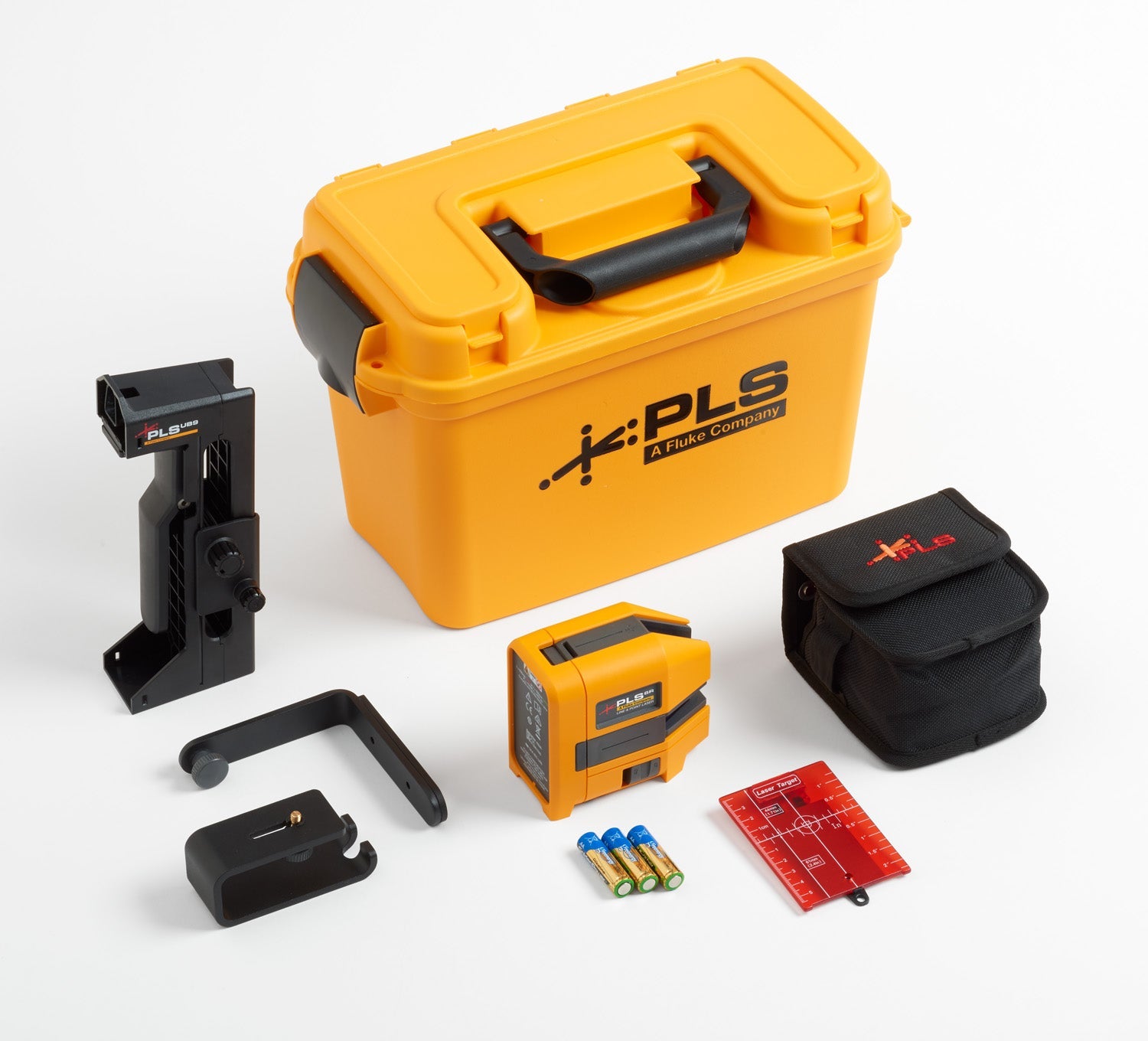

xPLS 6R KIT, Cross Line and Point Red Laser Level Kit
Product overview: PLS 6R KIT, Cross Line and Point Red Laser Kit
The new PLS 6R red laser levels offer the durability and precision you expect from PLS, a Fluke Company. We’ve replaced the PLS 4 red with the PLS 6 and created both a red and green version. The fast settling, self-leveling pendulum gives you accurate point and reference lines almost instantly. Additionally, these products feature a pendulum lock to secure the laser during transport or if dropped.
Features
- Plumb, level, and square with one tool. This professional self-leveling combination point and cross line laser level in red and green includes vertical and horizontal modes with lines and points combined. Great for metal or wood stud installation, general layout, square alignment, or finish carpentry.
- Kit includes floor stand, magnetic L-bracket, and UB9 wall and ceiling bracket for fast, easy overhang and centerline measurements.
- System includes the SLD laser line detector for use in bright lighting, long distances, or outdoors.
- Accuracy: ≤1/8 in at 30 ft. (≤3 mm @ 10 m)
- Red beam laser
- Point Laser Direction: 90° up, down, left, right
- Horizontal fan angle: 180 °
- Vertical fan angle: 130°
- Durable pendulum lock
- IP54 rating to limit dust and water entry for years of operation on the job site.
Specifications
| Rotary levels | PLS 6R, 6G | ||
|---|---|---|---|
| Battery | 3 x AA Alkaline IEC LR6 | ||
| Battery Life, Continuous Use | |||
| Red | ≥ 8 hours (both lasers) | ||
| Green | ≥ 3 hours (both lasers) | ||
| Point Laser Direction | 90° up, down, left, right | ||
| Line Fan Angle | |||
| Horizontal | ≥ 180° | ||
| Vertical | ≥ 130° | ||
| Working Range | |||
| Point Laser (6 only) | ≤30 m (100 ft.) | ||
| Line Laser | |||
| Without SLD | ≤15 m (50 ft.) | ||
| With SLD | 6 m to 60 m (20 ft. to 200 ft.) | ||
| Accuracy | ≤3 mm @ 10 m (≤1/8 in at 30 ft.) | ||
| Laser Leveling | |||
| System | Automatic, Pendulum | ||
| Range | 4° | ||
| Line Laser Width | ≤2 mm at 5 m | ||
| Temperature | |||
| Operating | -10 °C to 50 °C (14 °F to 122 °F) | ||
| Storage | |||
| With Batteries | -18 °C to 50 °C (-0.4 °F to 122 °F) | ||
| Without Batteries Relative Humidity | -20 °C to 70 °C (-13 °F to 158 °F) 0 % to 90 % (0 °C to 35 °C) 0 % to 75 % (35 °C to 40 °C) 0 % to 45 % (40 °C to 50 °C) | ||
| Size (H x W x L) | 116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in) | ||
| Weight | ~ 0.6 kg (1.3 lb.) | ||
| Safety | IEC 61010-1: Pollution Degree 2 | ||
| Laser | IEC 60825-1:2014 Class 2 | ||
| Light Source | Semiconductor laser diode | ||
| Max Output Power | < 1 mW | ||
| Wavelength | |||
| Red | 635 nm ± 5 nm | ||
| Green | 525 nm ± 5 nm | ||
Additional information
| Accuracy | 1/8" @ 30' (3mm @ 10m) |
|---|---|
| Batteries | Alkaline – 3 AA (included) |
| IP Rating | Product IP Rating 54 |
| Laser Class | Class II |
| Operating Time | ≥ 8 hours |
| Working Range | ≤30 m (100 ft.) |
